Color steel cold roof panel steel sheet roll forming machine
|Terms of Trade:||FOB,CFR,CIF|
|Min. Order:||1 Set/Sets|
|Delivery Time:||10 Days|
|Place of Origin:||Chine, Hebei|
|Supply Ability:||100 set/month|
Model No.: FY-915
Color steel cold roof panel Steel Sheet roll forming machine
Features of PPGI Sheet Roll Forming Machine Metal Roof Tile Making Machine:
Different roof/wall panel cold rollformer can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements.
We can also supply the customized machines.
Applications of PPGI Sheet Roll Forming Machine Metal Roof Tile Making Machine:
The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
The roof and wall tile steel roll forming machine production line is high precision and good productivity.
It needs 1-2 persons to handle the machine.
PLC control the machine, make the machine become more easily.
The cutting system can make the cut automatically with PLC control.
The whole work process is high safety level.
Roof and Wall Panel Roll Forming Machine Production Process:
manual uncoiler - roll forming machine - computer control system - hydraulic control system - cutting system - output table
Parameter of the Roof and Wall Panel Roll Forming Machine:
|Name||Color steel roll forming machine|
|Material of the cutting blade||Cr12|
|Width of the plate||914.1000.1250mm|
|Diameter of the roller||Φ70mm|
|Machine frame||300 H steel|
|Dimension of major structure(L*W*H)||5.5M*1.5M*1.5M|
Computer control cabinet:
The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Usage:It is used to support the Steel Coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Inner diameter: 500-508mm

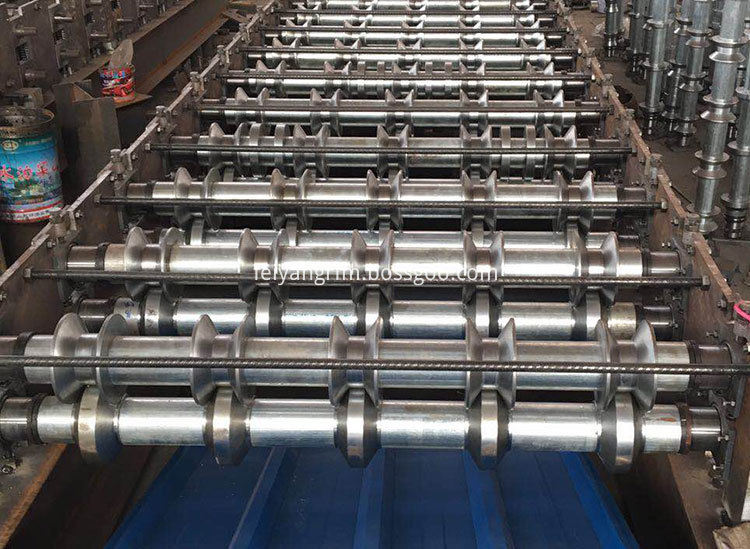

Material of rollers:45# steel,roller surfaces polishing, hard plating .The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

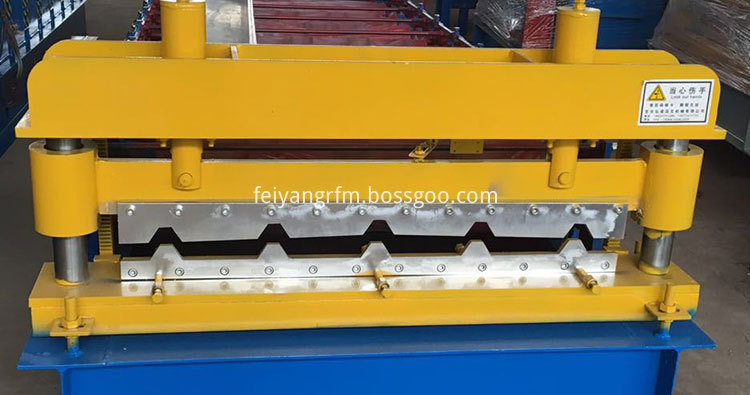

Material of the cutting:Cr12Mov with quenched treatment.It can decide cut panel dimension according to the hydraulic drive and PLC computer control system.
1. Technology:We have centers and innovative designing teams for different kinds of production lines.
2. After Sale Service:Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
3. Inspected by the Sellers:After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
4. Inspected by the Buyers:After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
Packaging & Shipping
1.We have professional technicians for loading
Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
